Electrical contractors constantly seek ways to simplify installations and reduce time on the job. In this article, we’ll explore how Eaton’s BBT series telescoping brackets, paired with Eaton’s BBA series box mounting brackets, can help you accomplish both goals quickly and efficiently.

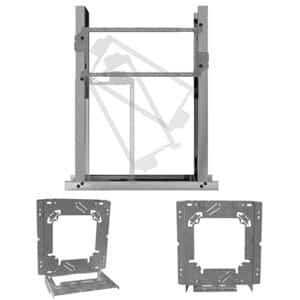

Exploring the B-Line series BBT Telescoping Brackets
The BBT telescoping brackets are available in three models: BBT-HF, BBT-WF, and BBT-16. All three models include an auto-height adjustment feature, allowing contractors to quickly ensure correct height every time. All three are also versatile enough to work with 4″, 4-11/16″, and 5″ electrical boxes. They are UL Listed for the U.S. and Canada, and CSA certified.
BBT-HF telescoping brackets are quick and easy to install. Simply slide the bracket to the width required, snap both ends of the bracket to the stud, and secure with screws. It offers hands free snap-to-stud for 1-1/4” through 1-3/8” wide studs and includes an Auto-ADA height feature.
BBT-WF is a telescoping box mounting bracket ideal for wide flange (structural style or wood) studs. It’s designed for use with structural style studs that are wider than 1-3/8” and includes an Auto-ADA height feature.
BBT-16 telescoping brackets are designed especially for smaller spaces. These brackets are designed for use with studs with 9-1/4” to 16-1/2” spacing.
Pair with B-Line series BBA Box Mounts for Even Greater Simplicity
The BBA box mounting brackets come in three varieties: BBA, BBA-2, and BBA-4. All three are designed to easily snap onto the BBT-HF, BBT-WF and BBT-16 bracket, and accept 4”, 4-11-16”, and 5” box sizes.
There are several features that set these game-changing box mounting brackets apart from the pack:
- BBA-2 is designed specifically for 2-1/2” deep studs without modification
- Patented Marty Mouse™ ears allow installers to retain the box when the plaster ring is removed
- Rabbit Ears™ allow installers to attach a plaster ring for data devices without using a box
- Built-in, snap-off back supports extension for studs from 2.5” to 6” studs on BBA-4
- Faster daisy chain boxes; two brackets mount to the same side of the stud
- Works with all standard mud rings
- UL Listed for U.S. and Canada; CSA certified

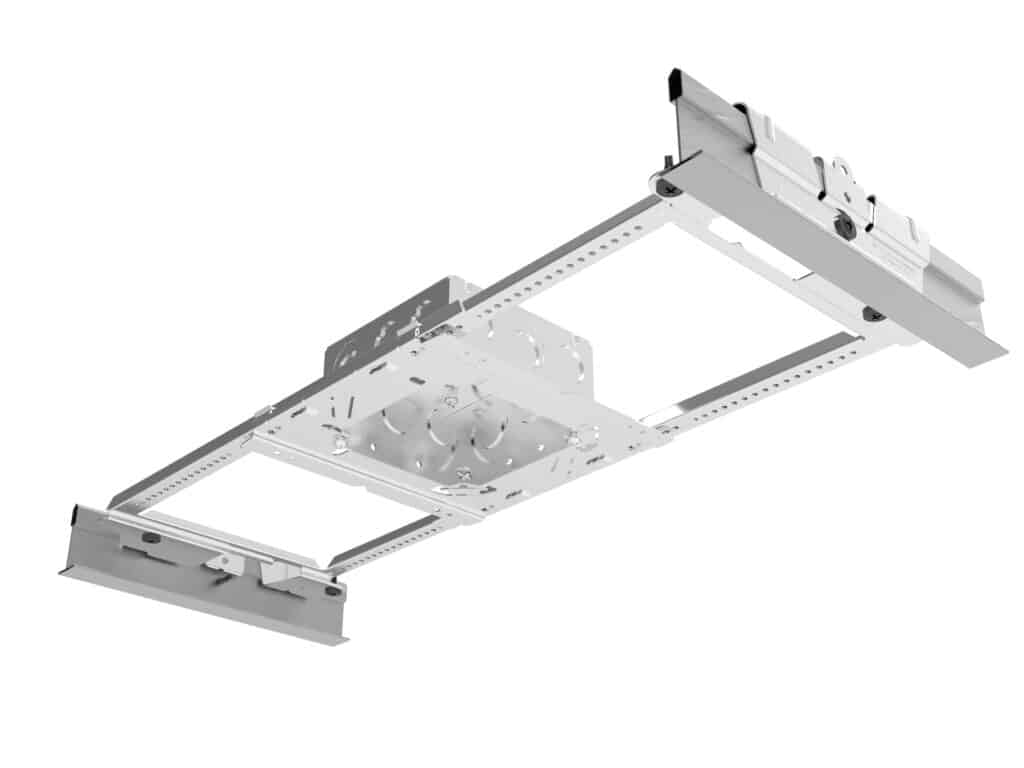

Introducing BBT-TG Ceiling Clips
Eaton also recently introduced a new B-Line series product into the family: BBT-TG ceiling clips. When paired with the popular BBT-WF telescoping bracket, the BBT-TG can be used for t-grid ceiling applications, helping reduce the number of SKUs required for both wall and ceiling installations.
The BBT-TG clips easily install onto the BBT-WF with two screws. Then, a BBA or BBA-4 alignment bracket can be attached to the BBT-WF for a rigid and reliable support for fire alarm boxes, nurse call buttons, lighting controls and more, in a ceiling application.
Make a Beeline for B-Line Innovation at Your Nearest Agilix Branch
Make a Beeline for B-Line Innovation at Your Nearest Agilix BranchEaton’s comprehensive range of high-quality, industrial-grade B-Line series products has set the standard for performance in the industry. So, it’s no surprise they’ve partnered with Agilix Solutions as an authorized distributor of Eaton B-Line range of support systems, enclosures, and fasteners. Whether you know what you need or you’re exploring options, you’re just a phone call or a visit away from putting Eaton’s B-Line series innovative solutions to work on your next installation. Stop by your local Agilix branch or reach out to your account manager to get started!
